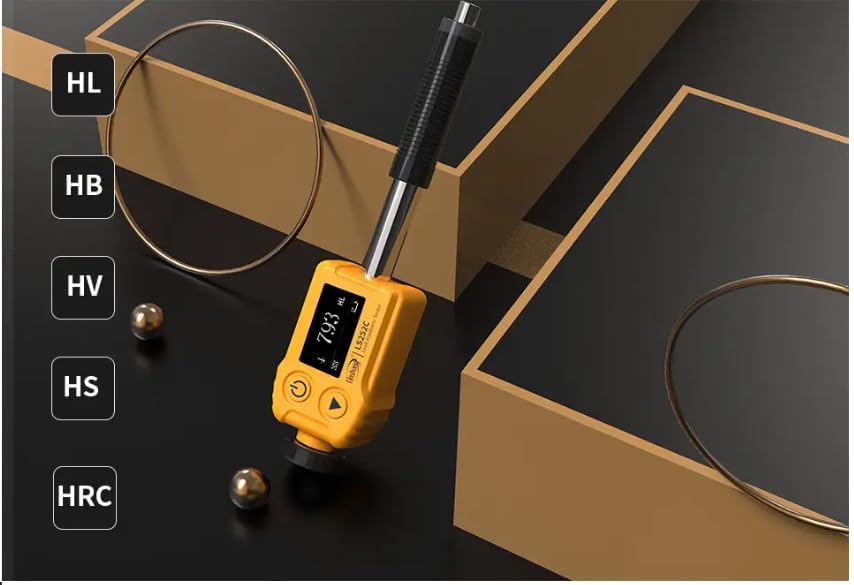

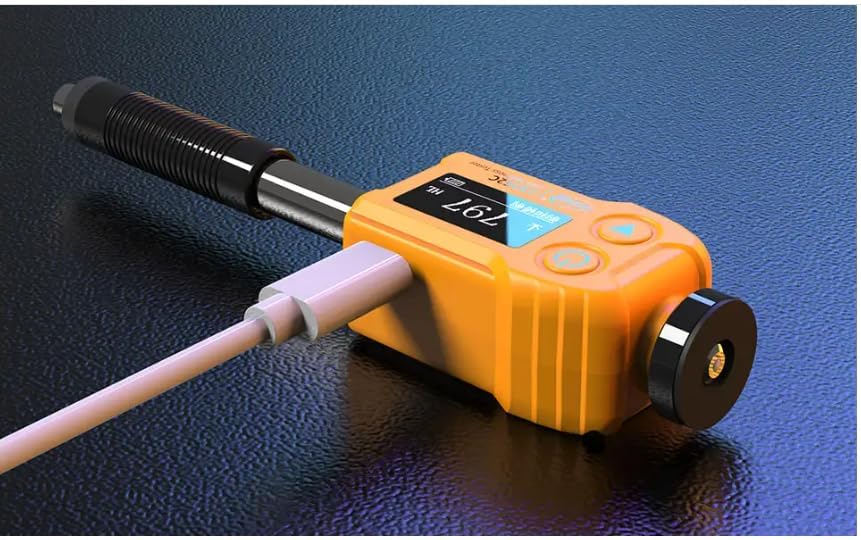

LS252C Digital Leeb Hardness Tester Pen Type Hardness Meter with Impact Device C, HLC: (170-960); HV(80-996); HB(80-683); HRC(20-69.5); HS(31.9-102.3)

Introduction LS252C is an all-in-one hardness tester with a compact size for hardness measurements on various metal materials. Featuring a C-shaped impact device with low impact force, it is suitable for testing the hardness of surface hardening layers and parts with small masses or thin thicknesses. The instrument uses advanced dual coil technology for good repeatability and high measurement accuracy. The probe has a built-in orientation sensor, which automatically compensates for measurement errors in different impact directions. The system has five hardness scales, which can be interchanged between Richter (HL), Vickers (HV), Brinell (HB), Shore (HS) and Rockwell (HRC) to avoid tedious manual calculations. Application The instrument uses a impact device C with many metal materials choices for wide applications. Specification Probe Impact device C Hardness Scales HL, HV, HB, HS, HRC Measurement Range HLC: (170-960); HV(80-996); HB(80-683); HRC(20-69.5); HS(31.9-102.3); Resolution 1HL Accuracy ±12 HL, ±6 HL typical Repeatability 6HL Display 128 * 64 dot matrix OLED Power Supply Rechargeable lithium battery 3.7V@250mAh, full charge for over 5000 continuous measurements Charging Port USB(Type-C) Size 140*34*24 mm Weight 66g Working Temperature Range -10~50℃，0~85%RH（no condensation） Storage Temperature Range -10~60℃，0~85%RH（no condensation）

• Impact device C for hardness measurement of small or thin metal parts;
• All-in-one design, compact and portable;
• Conversions to different hardness scales;
• Direction sensor inside the probe will compensate the measurement errors in different impact directions automatically;
• Impact device is made of Tungsten carbide;
• Users can calibrate the standard parts to reduce the error.
