E3z Diffuse Reflective/Retroreflective/Through-Beam/Laser Photoelectric Switch Sensor 12-24v 110-220v Adjustable Visible Light

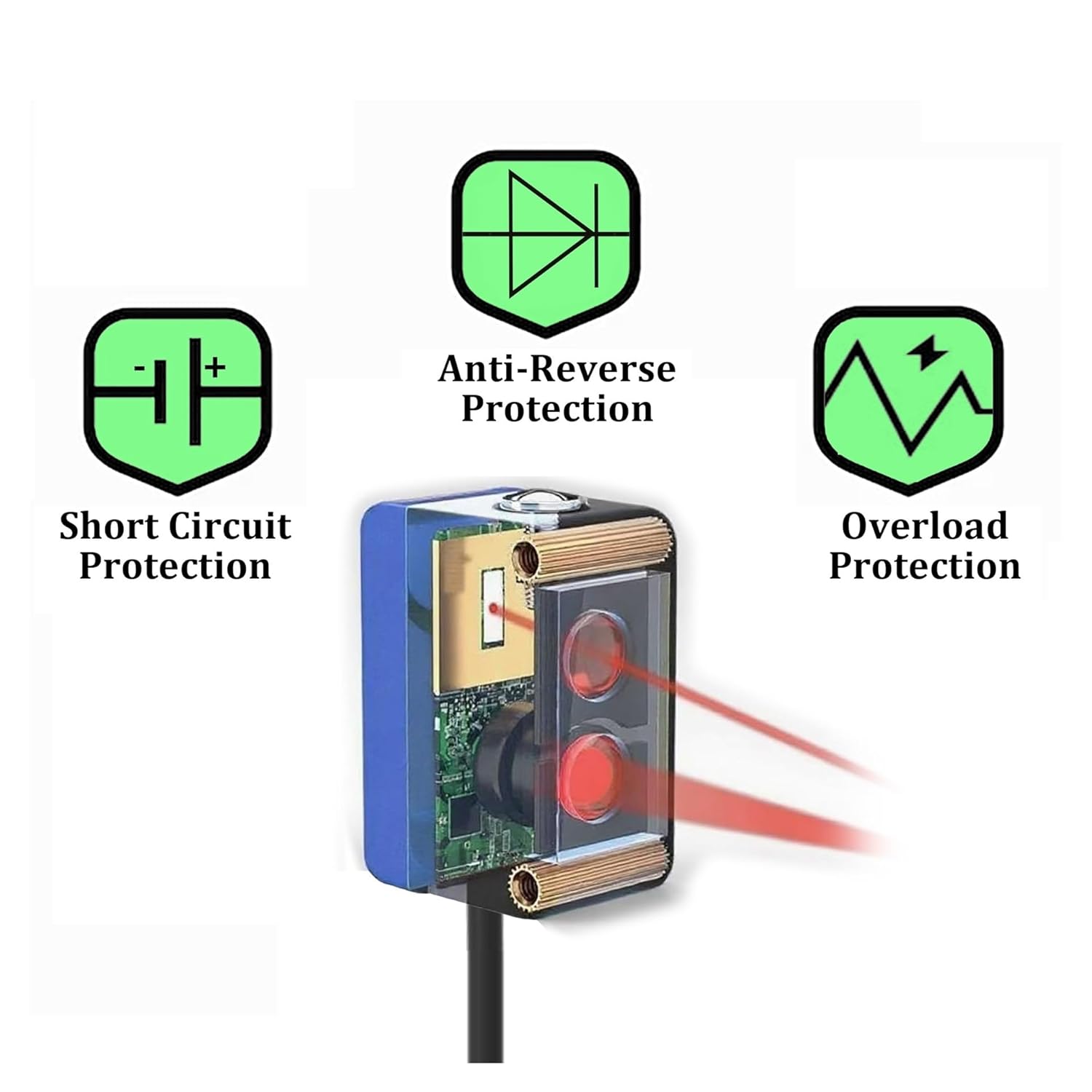

1. Product Parameters- Product Name: Photoelectric Switch with Visible Red Light- Sensitivity: Adjustable- Working Voltage: Optional 10 - 30V DC- Output Type: NPN(If PNP is needed, please select the SKU with a NPN to PNP convertor)- Max. Output Current: 100mA- Sensing Object: Opaque object (non-transparent)- IP Rating: IP65- Length of Cable: 1.9m (75 inches)- Main Material: Plastic- Ambient Temp.: -30 ~ 65- Ambient Humidity: 35% ~ 95%RH- Compatibility: This series of sensors can substitute E3Z- sensors of other brands.- Refer to table below for parameters comparison of different models.Details of the sensor:Long life lightAdvanced fast chipSurface-Mounted Light ReceiverAnti-interference shielding hooodReliable Metal KnobRail-Guided Lens for precise adjustement2. Attractive Features2.1 Built-in short circuit protection, anti-reverse protection and overload protection.2.2 IP65 Protection Level2.3 Background SuppressionOnly 2 models GS03 and LGS03 bear background suppression function which can maintain the same detection distance even though the colors of objects change. E.g. Black object has low reflection rate but the detection distance can be the same.2.4 Sensitivity Adjustable (Detection Distance)Turn the knob with a screw-driver (not included) to increase or decrease the detection distance in the range.2.5 Indicator Visible from Different ViewsGreen - Power on.Red - Output is triggered.2.6 Flexible cable with conductivity.It passed strict tension, bending and shaking test.3. Wiring Diagram & Drawing31 Wiring DiagramBrown Blue wires connect to powerBlack wire is the output.If White wire is not connected, the output is normally open (NO).If White wire is connected to the Blue wire (GND), the output is normally closed (NC).Wiring for the sensor with NPN to PNP convertor3.2 DrawingUnit: mmE3Z bracket is available for installation of the sensor. Click the link of picture below to purchase please, if it's needed together.4. Applicable FieldsWidely Applicable in automation machines, modern production lines, proximity detection, industrial robots, ...Current : Max100mAMaterial : PlasticSwitch Type : Photoelectric SwitchModel Number : Refer to SKUItem Type : SWITCHESIs Smart Device : NoOrigin : Mainland China
